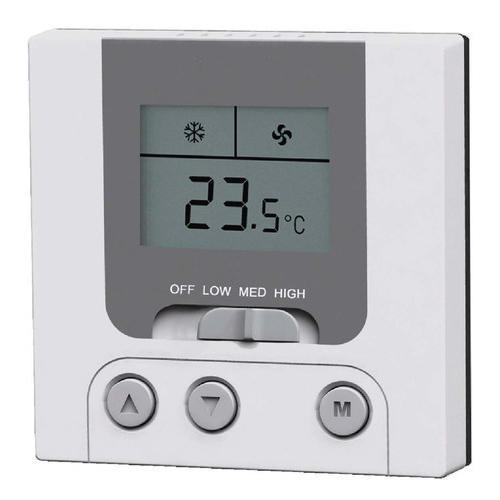

Belimo EXT-RCF-24 Electronic Thermostat Product Specifications Guide Belimo EXT-RCF-24 Electronic Thermostat Application EXT-RC series of proportional and fl oating thermostats are used to control room temperature in commercial applications. Features LCD with green backlight Detects and displays room temperature On/Off capability of cooling and heating equipment Room temperature setting Fahrenheit (°F) or Celsius (°C) display Selectable single or three speed fan control Remote sensor input Technical Data Technical Data Power AC 24V +10%, 50Hz/60Hz Output signal EXT-RCP-24 AC 24V x 2 (0.5A resistive) 0-10 VDC (5 mA) / 4-20 mA (600Ù) Output signal EXT-RCF-24 AC 24V x 2 (0.5A resistive) floating point control Input signal dry contact (NO) Dimensions 3.4” w x 3.4” h x 0.9” d [86mm x 86mm x 23mm] Fixing screw width 60mm (standard) Set temperature range 0° to 99.5° adjustable Accuracy displayed 0.1° Accuracy +0.5° Rated power < 1W Sensor type NTC Display LCD Basic Features Basic Features Working modes Cooling Belimo EXT-RCF-24 Electronic Thermostat 1, Heating Belimo EXT-RCF-24 Electronic Thermostat 2, Ventilating Belimo EXT-RCF-24 Electronic Thermostat 3, Auto Belimo EXT-RCF-24 Electronic Thermostat 4 Fan speed 3 speed ( Low Belimo EXT-RCF-24 Electronic Thermostat 5, Medium Belimo EXT-RCF-24 Electronic Thermostat 6, High Belimo EXT-RCF-24 Electronic Thermostat 7 ) / Auto Belimo EXT-RCF-24 Electronic Thermostat 8 Operation Instructions Operation Instructions On/Off Press Belimo EXT-RCF-24 Electronic Thermostat 11button. Setpoint Press Belimo EXT-RCF-24 Electronic Thermostat 10 to reduce the setpoint, press Belimo EXT-RCF-24 Electronic Thermostat 9to increase the setpoint in 0.5°C increments. The setpoint will be confirmed automatically after 5 seconds and then will return to display status. Press Belimo EXT-RCF-24 Electronic Thermostat 9 or Belimo EXT-RCF-24 Electronic Thermostat 10 to check setpoint. Mode Press M to change the working mode- Cooling Belimo EXT-RCF-24 Electronic Thermostat 2 , Heating Belimo EXT-RCF-24 Electronic Thermostat 1 , Vent Belimo EXT-RCF-24 Electronic Thermostat 3 . Fan speed Auto speed Press Belimo EXT-RCF-24 Electronic Thermostat 5 to select the desired speed- low Belimo EXT-RCF-24 Electronic Thermostat 5 , medium Belimo EXT-RCF-24 Electronic Thermostat 6, high Belimo EXT-RCF-24 Electronic Thermostat 7 , or auto Belimo EXT-RCF-24 Electronic Thermostat 8 . If single speed fan is chosen, only medium speed will be available. The fan speed will be changed automatically to the following: Low speed- when room temperature is 1° difference with setpoint. Med. speed- when room temperature is 2° difference with setpoint. High speed- when room temperature is 3° difference with setpoint. Sleep To set: To quit: The thermostat will go into sleep function after programming. Press M button for 3 seconds until Belimo EXT-RCF-24 Electronic Thermostat 12 display shows. A countdown will start in the center of the screen. Use Belimo EXT-RCF-24 Electronic Thermostat 9or Belimo EXT-RCF-24 Electronic Thermostat 10 adjust the desired sleep time. The maximum setting is 48 hours. The thermostat will return to working status after 5 seconds. Belimo EXT-RCF-24 Electronic Thermostat 12 will flash to start the countdown. The setpoint will be replaced by the sleep setpoint. When the thermostat is in sleep function Belimo EXT-RCF-24 Electronic Thermostat 12, will flash. Press Belimo EXT-RCF-24 Electronic Thermostat 9 or Belimo EXT-RCF-24 Electronic Thermostat 10 to quit. Keypad lock Press Belimo EXT-RCF-24 Electronic Thermostat 10 and Belimo EXT-RCF-24 Electronic Thermostat 9 for 10 seconds. This will activate the display. under this function, the keypad is locked. To unlock, press Belimo EXT-RCF-24 Electronic Thermostat 9 and Belimo EXT-RCF-24 Electronic Thermostat 10 for 10 seconds until disappears. Set parameters With thermostat off, press M for 10 seconds to enter the menu to set all parameters. Dimensions (mm) Belimo EXT-RCF-24 Electronic Thermostat 15 Parameter Settings Parameter Description Default Range 1 Power on status (0: off, 1: on, 2: hold) 2 – 2 Fan speed (0: single speed, 1: three speed) 1 – 3 Fan mode (DA: When the temperature reaches the set-point, the valve will close with the fan still running. DB: When the temperature reaches the set-point, the valve will close and the fan will shut off.) 0 – 4 Sensor selection (0: internal, 1: remote) 0 – 5 Temp. display (0: Celsius, 1: Fahrenheit) 0 – 6 Temperature calibration 0 -20 to +20 7 Minimum setpoint 5° / 41° 0 to 99 8 Maximum setpoint 35° / 96° 0 to 99.5 9 Dead band 2 – Modulating Output Options Location ON OFF 1 120 ohm resistance between AB wires No resistance between AB wires 2 Port 1 modulation 0-20 mA Off 3 Port 1 modulation 0-10 VDC Off 4 Port 2 modulation 0-20 mA Off 5 Port 3 modulation 0-10 VDC Off Wiring Diagrams Belimo EXT-RCF-24 Electronic Thermostat 13 Installation Manual Mounting Method BELIMO Americas USA Locations, 43 Old Ridgebury Road, Danbury, CT 06810 Tel. 800-543-9038, Fax 800-228-8283, marketing@us.belimo.com 1049 Fortunato Loop, Sparks, NV 89436 Tel. 800-987-9042, Fax 800-987-8875, marketing@us.belimo.com Canada Locations, 5845 Kennedy Road, Mississauga, Ontario L4Z 2G3 Tel. 866-805-7089, Fax 905-712-3124, marketing@us.belimo.com Latin America and the Caribbean Customer Service Tel. 203-791-8396, Fax 203-791-9139, marketing@us.belimo.com Belimo Brasil Comércio de Automação Ltda. Tel: 55 11 3643-5656, Fax: 55 11 3643 5657, atendimentoaocliente@br.belimo.com REFERENCE: DOWNLOAD MANUALS: Belimo EXT-RCF-24 Electronic Thermostat Product Specifications Guide Belimo EXT-RCF-24 Electronic Thermostat Product Specifications Guide wpx_thermostats NEXTHotowell HTW-MT08 Programmable Multi-Stage Smart Thermostat Installational Manual » PREVIOUS« Belimo EXT-CF230-D202-AF Electronic Thermostat Quick Start Manual Leave a Comment SHARE PUBLISHED BY wpx_thermostats TAGS: BelimoBelimo EXT-RCF-24Electronic ThermostatEXT-RCF-24EXT-RCF-24 ThermostatProduct Specifications Guide 9 MONTHS AGO RELATED POST Belimo EXT-CF230-D202-AF Electronic Thermostat Quick Start Manual RECENT POSTS BLYSS Blyss Valkla Digital Thermostat User Manual Blyss Valkla Digital Thermostat What is in the box Check the contents of the packaging… 1 month ago BLYSS Blyss Harku Thermostat User Manual Blyss Harku Thermostat What is in the box Check the contents of the packaging… 1 month ago DOCOOLER Docooler WiFi Smart Temperature Controller Thermostat User Manual Docooler WiFi Smart Temperature Controller Thermostat Introduction The Docooler WiFi Smart Temperature Controller Thermostat is… 2 months ago ISNATCH ISNATCH 49693532 Digital Thermostat User Manual ISNATCH 49693532 Digital Thermostat Introduction The ISNATCH 49.6935.33 Digital Thermostat is a programmable device designed… 2 months ago ISNATCH iSnatch 49.6830.33 Smart WI-FI Programmable Thermostat User Manual iSnatch 49.6830.33 Smart WI-FI Programmable Thermostat BEFORE WIRING AND INSTALLING Read these instructions carefully. Failure… 2 months ago ISNATCH iSNATCH 49.6935.33 Digital Thermostat User Manual iSNATCH 49.6935.33 Digital Thermostat Introduction Congratulations on the purchase of your new Digital Thermostat. Thanks… 2 months ago Archives December 2023 November 2023 October 2023 September 2023 August 2023 July 2023 June 2023 May 2023 April 2023 March 2023 February 2023 January 2023 Categories 2GIG ABB ACMELEC Adept Technology Aeotec Afulise AICI Airtouch AIRXCEL Alarm.com Alecto Alex AllbeAI Alloy ALM CONTROL AMANA AMATI Amazon Ambi Climate American Standard AmiciSmart AnBang ANLT Annuo Aowel AOYI Aprilaire Aqara Aramoxy Ardex ARISTON ATAG Aube Aube Technologies AUHX Autani Automated logic Automlife Avantec AVATTO Avonflow Azel BAIYILUN Bandary Baomain Baxi Beca Becasmart Bederus Belimo Beok BERM BEYONDELE BEYONDELEK BHDD Bingoelec BIOGREEN Bitron Blaupunkt Blosam Blyss bnthermic BONDA Boneco Bosch Brade Braeburn BRAND Bravo Breeze Breeze33 Breezecontrol Brother Bryant Bryant Housewise bticino Buderus Building 36 Byelearn CADET Caleffi CARBONWARM CARRIER CELECT Center Century Harvest Cerlingwee CG CH-HYSEN Chaffoteaux Chappée Chenzi CIELO Cn-hysen Coal-trol Digital Coleman Comforplanet Comfortheat ComfortNet COMPUTHERM Computime Group Control Temp Control4 Convectair COR CQNE Crestron CTC CUHeating Dabund Daikin Danfoss De Dietrich Degrii DeLOCK DELPHI Delta Dore Deltadore Denzye Devireg Devolo DIFEL digitalSTROM DIGITEN Docooler Doit DOMETIC Domisi Domos Donexon DOZ Drayton Duomei Duowei Duoye Dwyer E-Top EARU EARUELECTRIC EARUELETRIC Eaton Eberle Eclectic Ecobee EcoFactor ECONET Ecox ELECHICO ELECTECK ELEKTROBOCK Elgato elm leblanc ELM.LEBLANC Elsonic Emerson Emmeti EMOS ENERGATE EnerGenie ENERPIA Engocontrols EPH EPH Controls Eqiva Eruiklink ESBE ESI ETHERMA Etop EUROtronic Evolve EWARM Exo Terra EZAIOT ezheat Ezitown Eztofa FAIG Fantini cosmi FAQ FASTWARM FERROIL Ferroli Fibaro FINDER First Alert Flomasta Floureon fontastic Frico Fritz Dect Fritz! Dect FRITZ!DECT Frost Sentry Fujitsu Furrion Fuwinkr Gaobiao Garosa Garystat Garza GE APPLIANCES GE-CYNC Geevorks Genebre General life Generic Gewiss Gigaset GIRA GIRIER Glomarket Glow-Worm GoControl Goodman Google Nest Greenlite Hager Hailin Haisen hama HANDING Harmoni HBX Heagstat Heat decor Heat-Mat Heatcold Heatdecor Heatit Heatmiser Heatmisser Heatrite Heattold HELERO Heltun Hengsen Herschel HERZ HESSWAY HETTA Hexa CONTROL Hexa Controls HI COMFORT Hitachi Hive HIWELL HobbyWin Homematic HOMENEX Homplex Honeywell Honeywell Home Honeywell AUBE Honeywell Home Honeywell PRO HORSTMANN hotowell Hotpoint Hotwire HQ Hualans Huanri Huanrui Hunter Hysen icm control ICM Controls ICY Ideal iDevices IEC ILAMPS ILiving Inkbird INNCOM Innogy Insbud Controls INSTEON Interlogix intertechno Intouch INTRONICS Io-hvac-controls Ioio iSNATCH JABLOTRON Jiahong JINUKA Johnguest Johnson Controls JOWITTER JUANJUAN JUMO JUNG KALOR TECH Kampa KETOTEK King King Electric KKMOON klima KMC Controls KOALA Kontakt-Simon Laffey Laticrete Lava LDASEC Legom Legrand Lennox Leviton levoit LG lifesmart Lightwave LinkedGo Lizard CONTROL Logamatic Logictherm LowenergiE LUMGE Lux Luxpro LYAILOT Magnumheating maincor Manhot MANOMANO Mapei Marley Marleymep Master stat MAX Maxx Air MClimate MCLIMITE Mco home Mco-home MDMprint Meitay-tec Menred Meross Mewmewcat MI-HEAT MIA MIA Ventilation Micro-Air Midea miMonitor Minco Minco Heat MINCO HOME MINCO-HEAT MincoHome MITSUBISHI ELECTRIC Moes Moesgo MoesHouse Momit Monchrui Motan Msmart Mysa Myson napoleon NASHONE Natural Nedis Nefit NEO Neomitis Neptronic Nest Labs Netatmo Netural netwok thermostat network thermostat Neutral Neutral or OEM Nexia NHY NorthQ NOVA NuEasy Heat Nuheat Nvent OCSTAT OEM OJ ELECTRONICS Ojelectronics Okonoff Olympia Olympia ‎ OMNIE ONNDO Oraako Orbis Orbit Oshland OTIO Ouellet Oventrop OWN OWON Panasonic Peco Pelican PENGXIANG PERRY Pilipane Pioneer Plugwise PNI Poer Poly Pool Polypipe Popp Pro1 Pro1 Technologies PROHEAT Proselect Prostat PROSTATE ProWarm PT Purmo Qiaoxipan Quattro QuietWarmth Qunda RADEMACHER RADIO THERMOSTAT RadioThermostat ‎RANRAO Raychem Rayotec Reeburn REGIN REHAU Reliance Remeha Renkforce Retekool ReVolt Rheem RINGDER Ritetemp Robertshaw ROEY Rointe Rolbit Roleen Roma Heating Roth RSH Rti-Tek RUUD RZ Saiko SALALIS Salus San-as Sangamo Sanniu SAPULES Saswell Sauter Savant Schluter Systems SCHNEIDER ELECTRIC Secure seitron Seltron SENSI Shanwen Shelly Sheng Xi Hong SHOJZJ Shoumaite SHUWEI SIEMENS Sinope Siterwell Skytech Smart Laffey Smart temp Smarttemp Smlege SMLG SNUGSTAT Somfy SONOFF Sorandy Source1 SPEEDKEY SQIVO Stelpro STIEBEL ELTRON SUMING Sundirect SUNFLY SunStat SUNTOUCH Sunvic Supco Suqian Xinghe Electronic Suuwer SXENOO sygonix SZHHOME Taco Tado TAODA Tarautom TCS Bays Controls TechniSat Technoline Tehero Tekmar Telin Tellur Terneo Tfc Tower The Heating Company Theben Thermogroup THERMOKON ThermoPro Thermosoft ThermoSphere Thermostats TIANXUN TIMES SUPERMAN TINKO Toky Totaline Toupwell TOWERSTAT Tp Tp-link TPI Trade Trane Trihero TRUEWAY Tuya Uheat UNSH Uponor Uriel Vaillant VANCOO Velleman Vemer Venstar Verdant Viconics Vimar Vine Vive volun VTech VTRONIX Walfront WarmlyYours Warmup Waterfurnace WATTS WENGART Wenzhi WHITE-RODGERS WINSTON WL Worcester Worcester Bosch WUNDA WUNDATRADE Wyze Xavax XiCA XSDTS Xylem YIDI YIDIELE YIERYI YIHAI YoLink YORK YOUKONG Youyu YUANKY Yunyi Zemismart ZEN ZEN THERMOSTAT zengo zhilande zhongnuan Zhouqiao ZIGBEE ZN ZURN All Rights ReservedView Non-AMP Version t Lline #Belimo Thermostat #Belimo Electric Actuator Vadodara #
