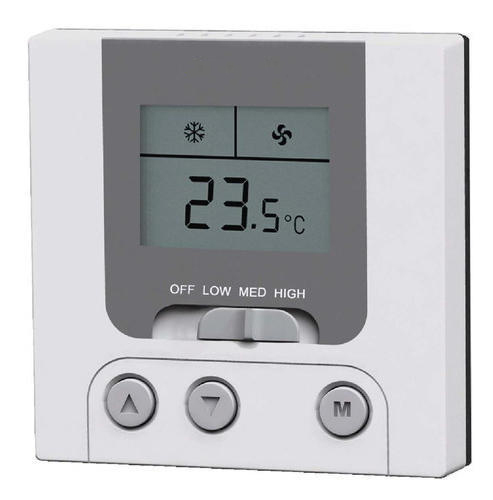

Belimo Thermostat EXT-HA-8023M Series Thermostat User Manual EXT-HA-8023M Series fan coil unit thermostats are designed to control the room temperature in air-conditioning fan coil unit system or dust pipe channel system, through the cooperation between room temperature and setting temperature to control the turn-on or turn-off of Usual 3 speed AC fan coil unit, motorized valve, ball valves or damper. Network control is available (MODBUS). EXT-HA-8023M series thermostats are with microprocessor and big LCD display. It shows the following items: working states (cool, heat or ventilation), fan speed, room temperature, set-point temperature etc. Keys include turn on/off （ ） , mode (M), fan speed ( ) and temperature adjustment (   ). BASIC FEATURES STATUS DISPLAY  Room temperature setting  Manual or auto 3-speed changeover  Defrost (low temperature protection)  Blue back light  Keypad Lock ( Optional )  Auto Restart  RS485 Interface (MODBUS)  Working Status:Cooling , Heating or Ventilation  Fan Speed（ Low 、 Med 、 High or AUTO）  FCU valve open  Room temperature display  Temperature setting display SPECIFICATIONS  Sensing element: NTC  Accuracy:  1℃  Set-point range: 5℃ to 35℃  Display range: 0～55℃  Operation environment: 0～45℃  Operating Humidity: 5～95%RH (non-condensing)  Key: soft touch key  Rated Power:  1W  Power supply: AC 85～260V, 50/60Hz  Wirings: Accepting 2 ×1.5 mm2 or 1 x 2.5mm2 wires  Switch current rating: Resistive: 2 A, Inductive: 1 A  Housing: PC + ABS Flame Retardant  Dimensions: 90 ×88 × 15.5 mm ( W ×H ×D )  Hole pitch: 60 mm ( Standard )  Protection Class: IP30 OPERATION  On/Off: Press “ ” to turn on, press“ ” again to turn off thermostat and its output.  Setting temperature: Press “” to reduce set-point, press “” to raise set-point, and 0.5℃ changed once.  Mode Selection: Press “ ” to change system working in cooling “ ”, heating “ ” or ventilation “ ” mode, the related icon will flash.  Fan Speed Selection: Press “ ” to change fan speed among “ (Hi)”, “ (Med)”, “ (Low)” or “AUTO (Auto)”. Under auto fan speed “AUTO”, the fan-speed will be changed automatically. Auto LOW-speed When the difference between room-temperature and set-point is 1℃; Auto MED-speed When difference is 2℃; Auto Hi-speed When difference is 3℃.  Control Motorized Valve: If the difference between room temperature and set-point exceed 1℃, FCU valve will be open; if room temperature and set-point are equal, EXT-HA-8023M will close the FCU valve with the fan still running. Keyboard Lock Function Keyboard Lock: the keyboard would be automatically locked in 30 seconds in case that no one uses the thermostat, to prohibit other persons to operating the thermostat.  Keyboard Unlock： Press“ ”for 5 seconds to unlock（keyboard would be automatically locked after 30 seconds without anyone using the thermostat） . Low Temperature Protection Function  When the thermostat turns off and the room temperature is lower than 5℃, it would automatically turn on the heating model with “ ” showing, the fan runs in high speed and the motorized valve is turned on.; When the room temperature reaches to 7℃, the thermostat will automatically close the output. Low Temperature Protection Setting  Turn off the thermostat, press” ” and hold for 3 seconds, it will display “OF” or “ON”, press “▲” or “▼” key to adjust. “OF” indicates low temperature protection invalid, “ON” indicates low temperature protection function valid. #Belimo Thermostat in Vadodara #Belimo EXT #Belimo Vadodra #belimo Vadodra
