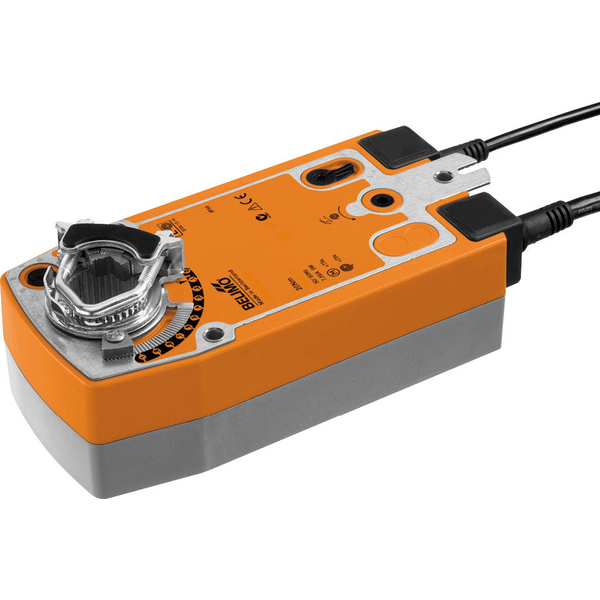

Rotary actuator fail-safe, 10 Nm, AC 24...240 V / DC 24...125 V, Open/close, 75 s, 2x SPDT, IP54 Specifications Voltage AC/DC AC 24...240 V / DC 24...125 V Power consumption (running) 6 W Power consumption (holding) 2.5 W Power Consumption For Wire Sizing 9.5 VA Auxiliary switches 2x SPDT Connection Supply Control Cable 1 m, 2x 0.75 mm² Connection Auxilary Switch Cable 1 m, 6x 0.75 mm² Torque 10 Nm Control type Open/close Direction Of Motion Motor selectable by mounting L/R Direction of rotation (fail-safe) Selectable by mounting L/R Manual override By means of hand crank and locking switch Angle of rotation 95 Running time (motor) 75 s / 90° Running time (fail-safe) <20 s Mechanical interface Universal shaft clamp 10...25.4 mm Protection category IP54 Degree Of Protection NEMA NEMA 2 Enclosure Type UL Enclosure Type 2 Ambient Temperature -30...50°C [-22...122°F #NFA-S2 #LR24A-SR #GM24A-SR #Belimo Actuator Gujarat #Belimo Gujarat
