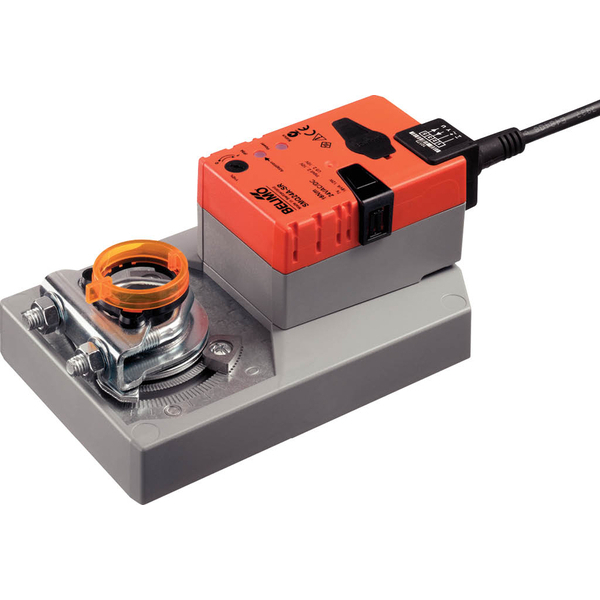

SMQ24A-SR Very fast running rotary actuator, 16 Nm, AC/DC 24 V, 2...10 V, 7 s, IP54 Specifications Voltage AC/DC AC/DC 24 V Power consumption (running) 15 W Power consumption (holding) 2 W Power Consumption For Wire Sizing 26 VA Connection Supply Control Cable 1 m, 4x 0.75 mm² Torque 16 Nm Control type DC 2...10 V Direction Of Motion Motor selectable with switch 0/1 Manual override With push-button, can be locked Angle of rotation 95 Running time (motor) 7 s / 90° Mechanical interface Universal shaft clamp reversible 12...26.7 mm Protection category IP54 Degree Of Protection NEMA NEMA 2 Enclosure Type UL Enclosure Type 2 Ambient Temperature -30...40°C [-22...104°F] #SMQ24A-SR #Belimo Actuator supplier in Vadodara #Malteax Trading Vadodra
