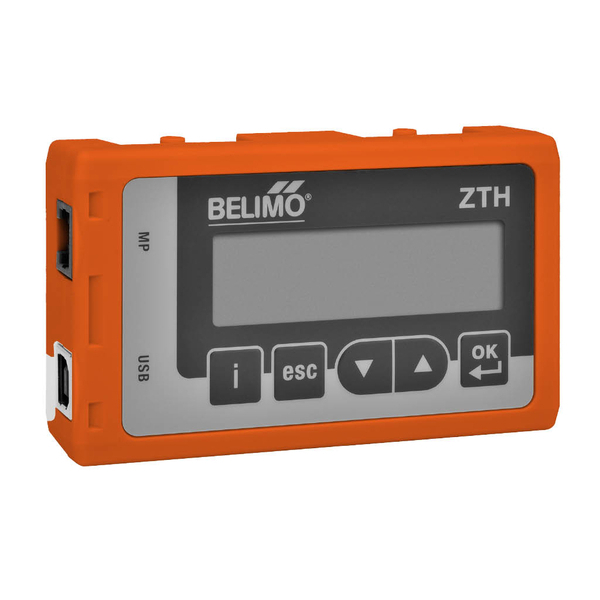

ZTH EU Service tool for parametrisable and communicative actuators/VAV controllers/ HVAC performance devices from Belimo Hz, DC 24 V (from actuator) Nominal voltage range AC 19.2...28.8 V/DC 21.6...28.8 V Power consumption in operation 1 W Connection Connector socket for connection cable ZK1-GEN (3 m) with connector plug enclosed Interface USB 2.0 USB connector plug type B, connection cable (1 m) with connector plug A to B enclosed Optional cables ZK2-GEN, ZK6-GEN Interface Communication Point-to-point (PP), no bus mode possible (MP) Operating modes Parametrisation Point-to-point (PP) Connection via service socket or terminals on the actuator. MP level converter (ZIP function) Connection in the control cabinet or via service socket at the actuator. For MP monitor operation, connection to MP-Bus Operating LCD display 2 x 16 characters, with backlight Buttons i / esc / / / OK Safety Protection class III Protective extra low voltage (PELV) EMC CE according to 2014/30/EU Operating temperature –0...50°C, non-condensing Storage temperature –20...50°C, non-condensing Dimensions/Weight Dimensions L x W x D: 95 x 55 x 25 mm Weight approx. 135 g Safety notes – The device is not allowed to be used outside the specified field of application, especially not in aircraft or in any other airborne means of transport. – Connection permitted only for Belimo devices with 24 V protective extra low voltage (PELV) and PP/MP interface. – Changes to parameters, etc. may only be made after consultation with/information from the OEM, device or plant manufacturer. Important: Observe the #ZTH Belimo Vadodara #Belimo ZTH tool #Belimo Actuator supplier in Vadodara #Malteax Trading Vadodra
