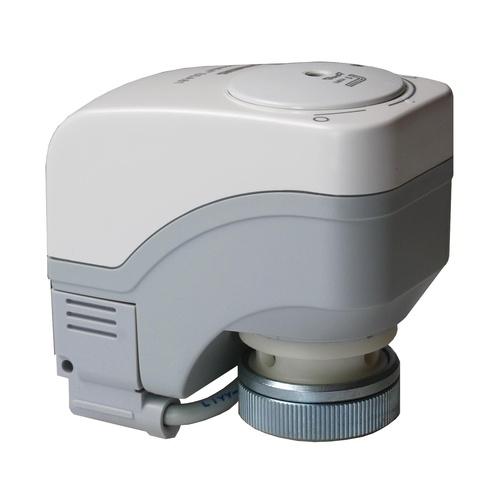

SIEMENS MODULATING ACTUATOR
INR 8000 INR 9000
Enquire
Description
Electromotoric actuators for modulating or 3-position control of small valves for terminal units and chilled ceilings. With position indication, manual control and plug-in type connecting cable 1.5 m. Automatic stroke adaption and force-dependent switching off in the end position. Additional info For fitting to the valve: Cap nut G¾” SSB61.., SSB81.. are CE, C-tick, UL and cUL listed. Additional info Operating voltage : AC 24 V, DC 24 V Positioning force: 200 N Stroke: 5.5 mm Positioning signal: DC 0…10 V Power consumption: 2.5 VA Positioning time: 75 s Cable length: 1.5 m Degree of protection :IP40 Ambient temperature, operation: 1…50 °C Medium temperature: 1…110 °C Ambient humidity, operation: 5…85 % r.h. Dimensions (W x H x D): 83 x 81.4 x 48 mm Mounting position: Upright to 90° inclined
