Description

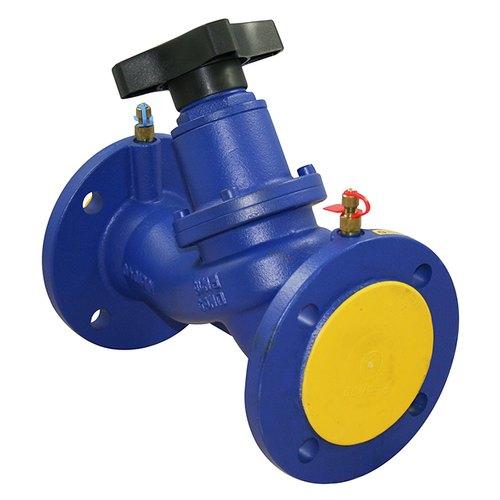

MSV-F2 valves are manual presetting valves. They are used for balancing the flow in heating and cooling installations. The valves have position indicator and stroke limiter as standard. Hood of spindle is integrated with stroke limiter. Setting can be locked. Valve characteristics are set up in measuring unit PFM 3000. Description DANFOSS BALANCING VALVE FLANGE END MSV-F2, PN 16/25, DN 15 – 400 Main data: • DN 15 – 400 • PN 16:- Flow temperature: –10 °C … 130 °C • PN 25:- Flow temperature: –10 °C … 150 °C • Valves are mounted on flow or return pipe. Always install the valve with the arrow on the body in the same direction as the flow. In order to avoid turbulence, which will affect the measuring accuracy, it is recommended to have a straight length of pipe up and down stream from the valve as shown (D – diameter of pipe). The influence of turbulence, if our recommendations are not adhered to, can influence the flow up to 20%.
