Description

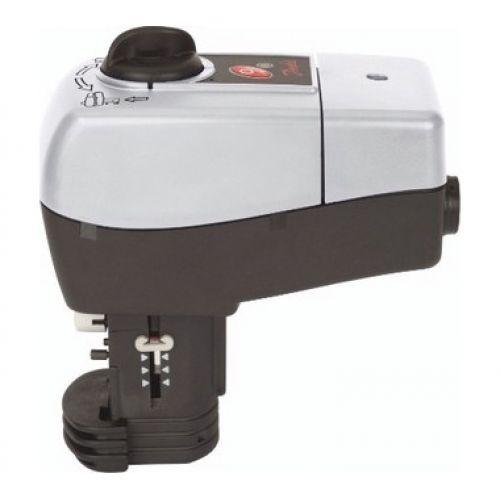

AME 435 actuator is used with two and three way valves type VRB, VRG, VF and VL up to DN 80 diameter. The actuator automatically adapts its stroke to the valve end positions which reduces commissioning time (self stroking). The advanced design incorporates load related ‘switch-off’ to ensure that actuators and valves are not exposed to overload. Description The actuator automatically adapts its stroke to the valve end positions which reduces commissioning time (self stroking). The advanced design incorporates load related ‘switch-off’ to ensure that actuators and valves are not exposed to overload. Main data: • Nominal voltage: – 24 V, 50 Hz/60 Hz • Control input signal: – 0(4)…20 mA, – 0(2) … 10 V • Force: 400 N • Stroke: 20 mm • Speed (selectable): – 7.5 s/mm – 15 s/mm • Max. medium temperature: 130 °C • LED signalistion • Self stroking • External RESET button • Manual operation
