Description

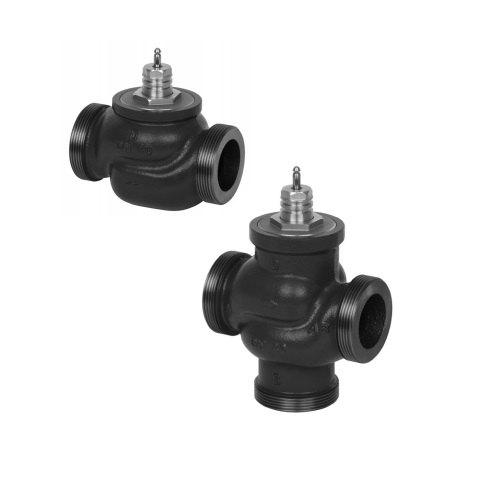

VRG 2 – 2-way valve, external thread VRG 3 – 3-way valve, external thread VRG valves provide a quality, cost effective solution for most water and chilled applications. The valves are designed to be combined with AME 435 acuators. Combinations with other actuators could be seen under Accessories. Description Main data: • DN 15-50 • kVS 0.63-40 m /h • PN 16 • Temperature: – Circulation water / glycolic water up to 50 % 2 (–10*) … 130 °C * At temperatures from –10 °C up to +2 °C use stem heater • Connections: – External thread • Compliance with Pressure Equipment 3-way valve is mixing valve meaning that A and B ports are inlet ports, and AB port is outlet port. In case valve should be used as diverting valve (which is in general not allowed) it is a solution to install valve in return pipe
