Description

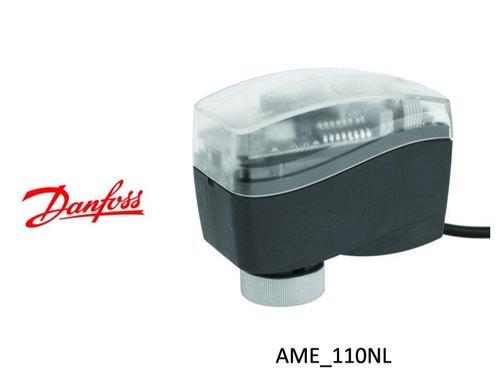

The actuators are used together with automatically balanced combination valve type AB-QM for DN 10 to DN 32. Ordering Technical data The actuator can be used with fan coil units, induction units, small reheaters, recoolers and zone applications in which hot/cold water is the controlled medium. Description Main data: • Gap detection at stem up position • Modulating control • Force switch-off at stem down position prevents overload of actuator and valve. • No tools required for mounting • Maintenance-free lifetime • Low-noise operation • Self-positioning process • Halogen free cables Type AME110NL and AME120NL Power supply: 24 VAC; +10 to –15% Power consumption: 2 VA Frequency: 50 Hz/60 Hz Control input Y: 0 … 10 V (2 … 10 V) Ri = 110 kΩ & 0 … 20 mA (4 … 20 mA) Ri = 500 Ω Close of force: 130 N Stroke: 5 mm Speed: 24 s/mm 12 s/mm Max. medium temperature: 120 °C Ambient temperature: 0 … 55 °C Storage and transport temperature: –40 … +70 °C Protection class: III safety extra-low voltage Degree of protection: IP 42 Weight: 0.3 kg – marking in accordance with standards Low Voltage Directive 2006/95/EC: EN 60730-1, EN 60730-2-14 EMC Directive 2004/108/EEC: EN 61000-6-2, EN 61000-6-3
