Description

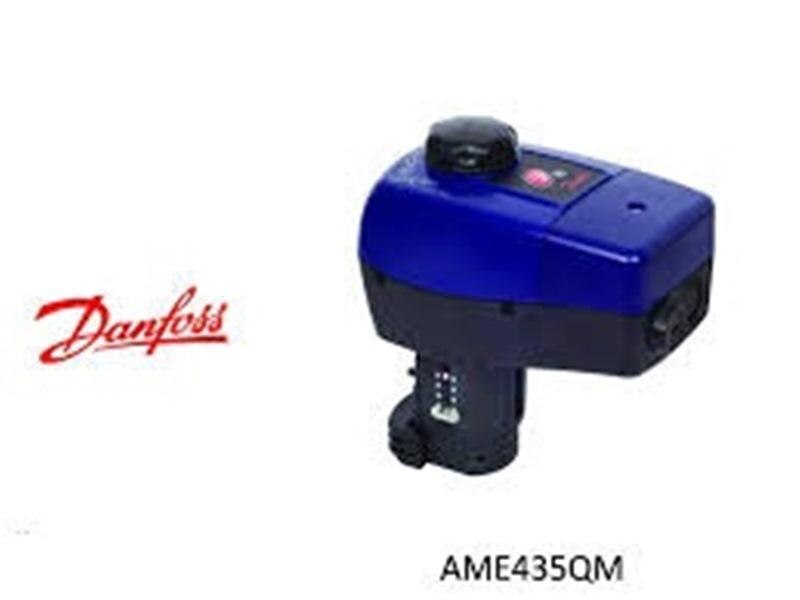

AME435QM actuator for modulating control is used with pressure independent balancing and control valve type AB-QM from DN 40 to DN 100. Description The actuator has some special features: • it automatically adapts its stroke to the valve end positions which reduces commissioning time • valve flow adjustment feature; flow cavariably-adjusted from linear to logar opposite. • the advanced design incorporates load related ‘switch-off’ to ensure that actuator valves are not exposed to overload Main data: • Nominal voltage (AC or DC): – 24 V, 50 Hz/60 Hz • Control input signal: – 0(4)-20 mA – 0(2)-10 V • Force: 400 N • Stroke: 20 mm • Speed (selectable): – 7.5 s/mm – 15 s/mm
